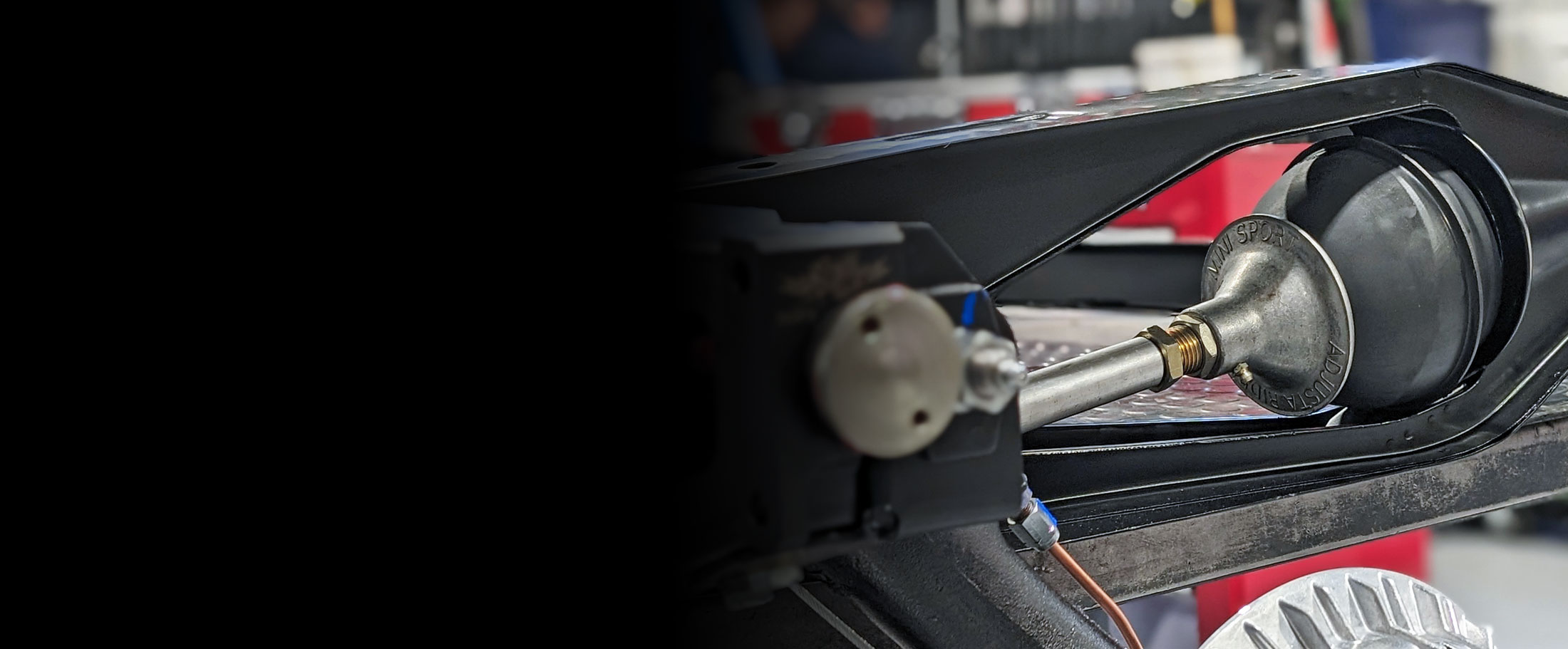

Adjusta Ride Variable Height Suspension
Set the stance. Correct the ride height. Build a better foundation for the way your Classic Mini drives.
Your Mini Should:
Sit Right And Drive Right
Ride height affects far more than the way a Classic Mini looks. It forms part of the suspension setup, influencing available suspension travel, stance and the starting point from which the car's geometry is set.
The original Mini suspension is one of the features that gave the car its unmistakable character. Instead of conventional steel coil springs, the dry-suspension Mini uses compact rubber cone springs working through suspension trumpets and arms.
It is brilliantly simple, compact and effective, but after decades of use the height of one Mini can be very different from another. Rubber cones settle, suspension components wear and cars are often rebuilt using parts from different periods or specifications.
The result can be a Mini that sits too high, too low, unevenly from side to side, or simply not where the owner wants it.
Mini Sport Adjusta Ride was developed to give owners control over that part of the suspension setup.
The Idea
Adjusta Ride is not simply a way of lowering a Mini. It replaces the fixed-length suspension trumpet arrangement with an adjustable system, allowing the ride height to be set to suit the car, its suspension components and the way it is used.

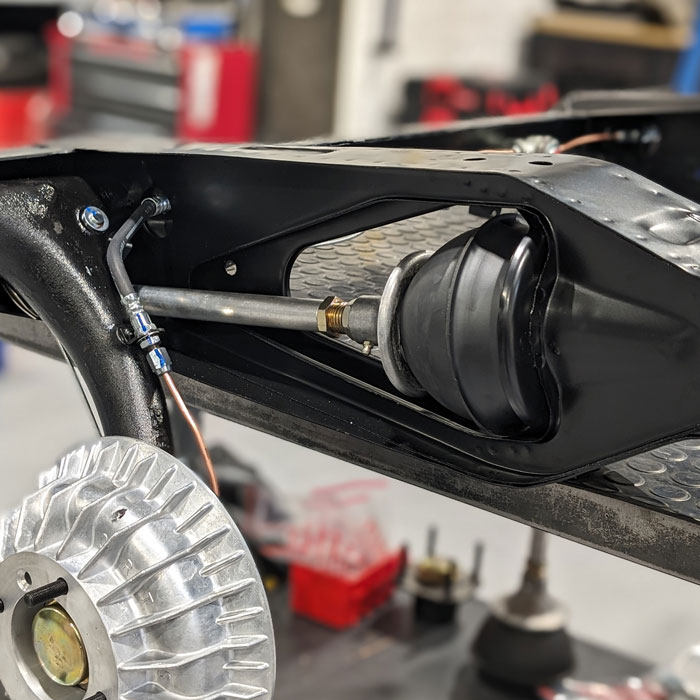

Understanding Classic Mini
Rubber Cone Suspension
To understand why Adjusta Ride is useful, it helps to understand the basic job of the components already fitted to the Mini.
On a dry-suspension Mini, the rubber cone acts as the spring. As the wheel moves, the suspension arm works against the cone through the trumpet and knuckle arrangement.
The shock absorber then helps control that movement, preventing the suspension from continuing to bounce after the spring has been compressed or released.
Each component therefore has a different job.
- Rubber cone: provides the springing and supports the weight of the car.
- Suspension trumpet: transfers movement between the rubber cone and suspension arm.

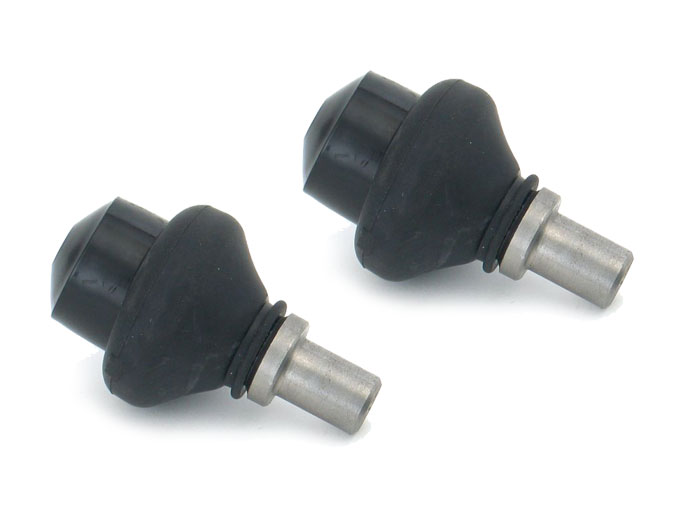

- Knuckle joint: provides the articulated connection into the suspension arm.
- Shock absorber: controls suspension movement.

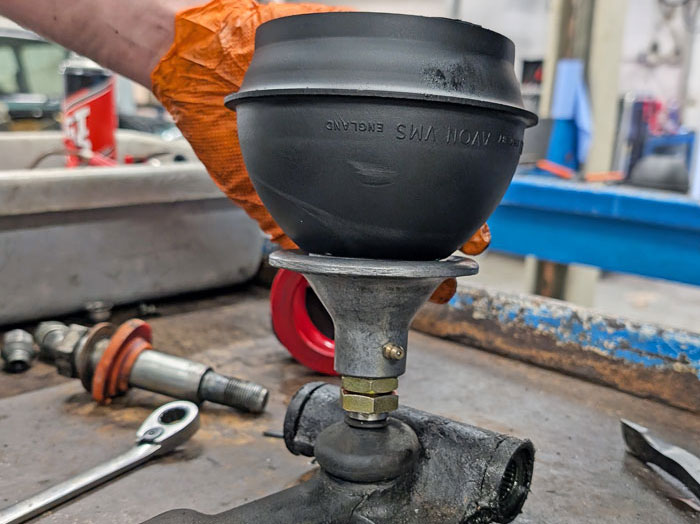

Adjusta Ride replaces the fixed suspension trumpet arrangement with an adjustable unit, giving you a practical way to alter and correct the ride height.
Important: Adjusta Ride Does Not Replace The Rubber Cone
The rubber cone remains the spring. Adjusta Ride provides the adjustable connection between the cone and suspension arm. If the existing rubber cones are old, compressed or badly deteriorated, changing the ride height alone will not restore their original spring characteristics.
Why Does Ride Height Matter On A Classic Mini?

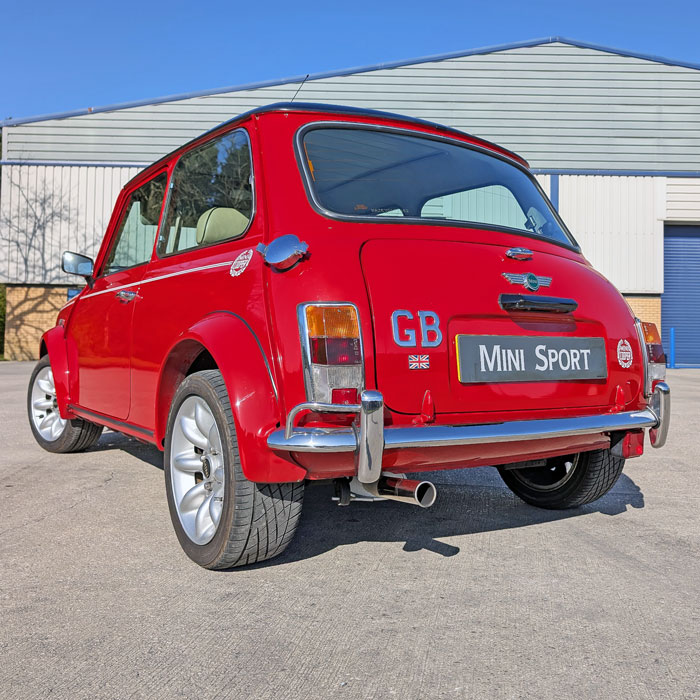

A Mini that sits correctly doesn't just look better. Correct ride height gives the suspension the room it needs to work and creates the right starting point for the rest of the chassis setup.

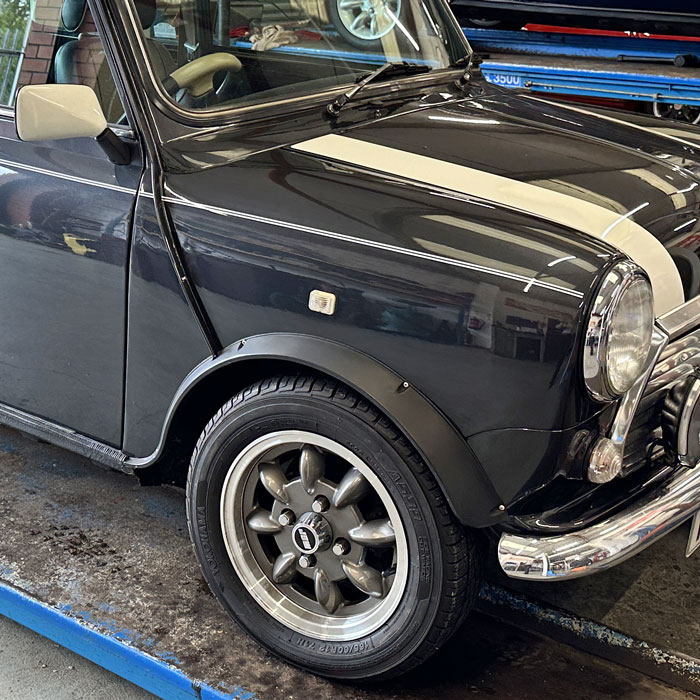

Correct The Ride Height
Ageing suspension components can leave a Mini sitting lower or unevenly. Adjusta Ride gives you a means of correcting the height rather than being limited by a fixed-length trumpet.
Set The Stance
Whether you prefer a near-standard appearance or a slightly more purposeful fast-road stance, Adjusta Ride allows the car to be positioned more precisely.
Build A Better Setup
Once the ride height is established, camber, castor and tracking can be checked around a known suspension position rather than attempting to set geometry on a car that is sitting incorrectly.
Lower Is Not Automatically Better
The objective should not be to make the Mini as low as possible. Excessive lowering can reduce useful suspension travel and may compromise the way the suspension operates. A good setup balances the stance you want with the clearance, movement and geometry the car needs.
What Is Mini Sport Adjusta Ride?
Adjusta Ride is Mini Sport's variable ride-height suspension system for dry-suspension Classic Minis, manufactured through MAD - Motorsport Advanced Developments.
Each Adjusta Ride unit replaces the original fixed alloy trumpet and is designed to provide a strong, reliable and easily adjustable suspension connection.
Mini Sport developed the system using pressure die-cast high-specification alloy together with high-tensile plated-steel adjustment components. The system was extensively tested both on and off the car and was designed to install without body modification.
Once fitted, height adjustment is straightforward and can be carried out using two spanners, making future ride-height correction much simpler than relying on fixed suspension components.
- Precision-engineered adjustable suspension units.
- Direct replacement for the original trumpet arrangement.
- No body modification required.
- Simple mechanical ride-height adjustment.
- Available as front, rear or complete-car systems.
- Suitable as the foundation for road, comfort and performance suspension packages.
Mini Sport Adjusta Ride
The complete SUSKIT5 package provides Adjusta Ride units for the front and rear of a dry-suspension Classic Mini, allowing the complete car to be set rather than adjusting only one axle.
View Complete Adjusta Ride KitWhy Fit Adjustable Units When The Suspension Is Already Apart?
If the original trumpets, knuckle joints or rubber cones are already being removed during a suspension rebuild, fitting Adjusta Ride adds future ride-height control at the same time. Instead of rebuilding the suspension around a fixed height, you gain the ability to fine-tune how the Mini sits once the components have settled and the car is back on the road.
Front, Rear Or Complete Car?
Mini Sport Adjusta Ride is available for the front, rear or as a complete-car system, allowing you to choose the right solution for the work being carried out on your Mini.
If you're repairing or rebuilding one end of the suspension, front and rear kits allow that area to be upgraded individually. For a complete suspension refresh, restoration or performance setup, fitting Adjusta Ride throughout the car gives you control over the overall ride height and stance.

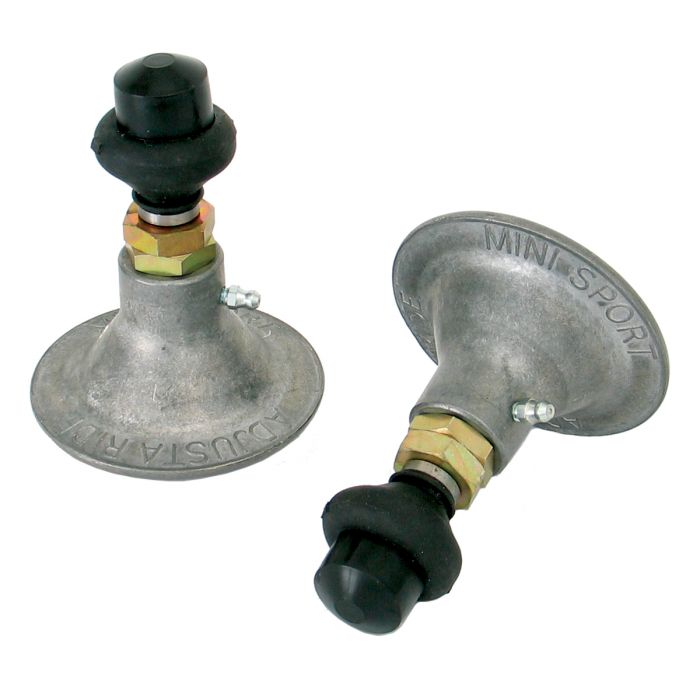

Front Adjusta Ride
Replace the original fixed front suspension trumpets with adjustable units, giving you control over the front ride height when rebuilding, refreshing or improving the suspension.
A useful choice when front suspension work is already underway or when the front ride height needs correcting independently.
Explore Front Adjusta Ride

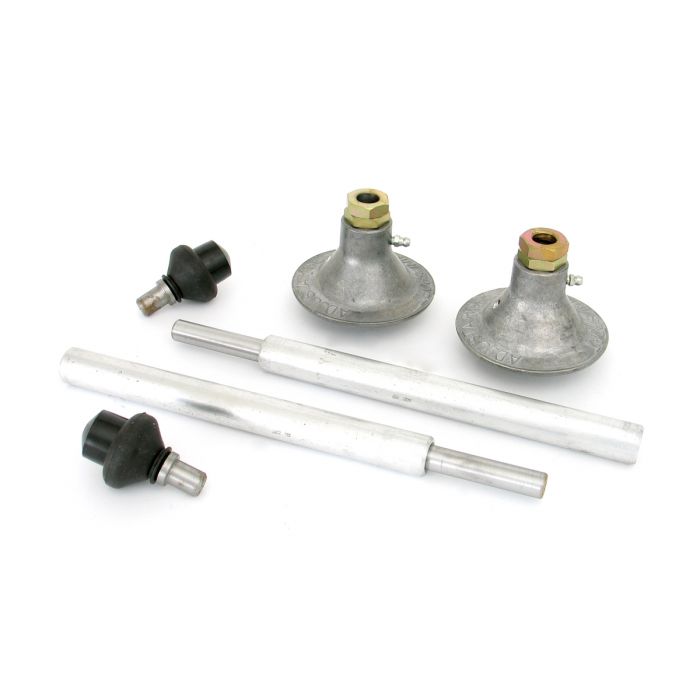

Rear Adjusta Ride
Rear Adjusta Ride provides the same principle of ride-height control at the back of the Mini, replacing the fixed suspension arrangement with an adjustable system.
Ideal when rebuilding the rear suspension, replacing tired components or correcting the way the rear of the car sits.
Explore Rear Adjusta Ride

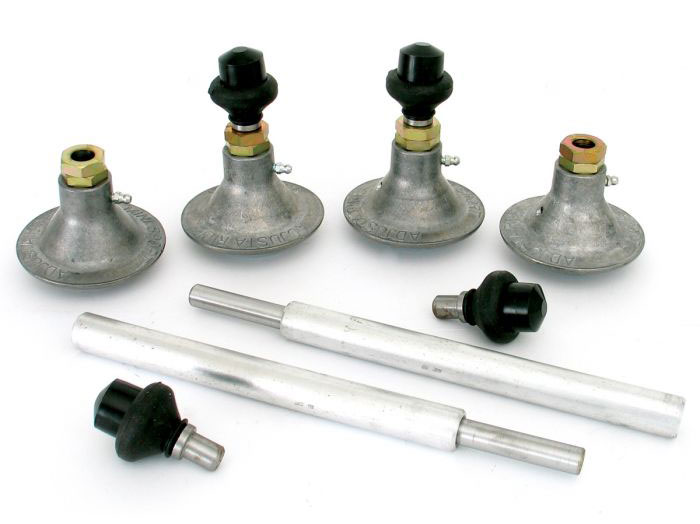

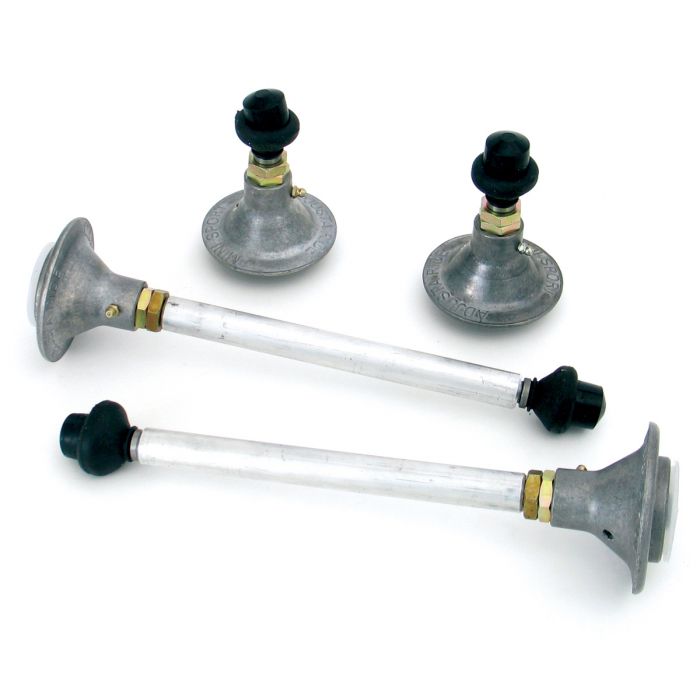

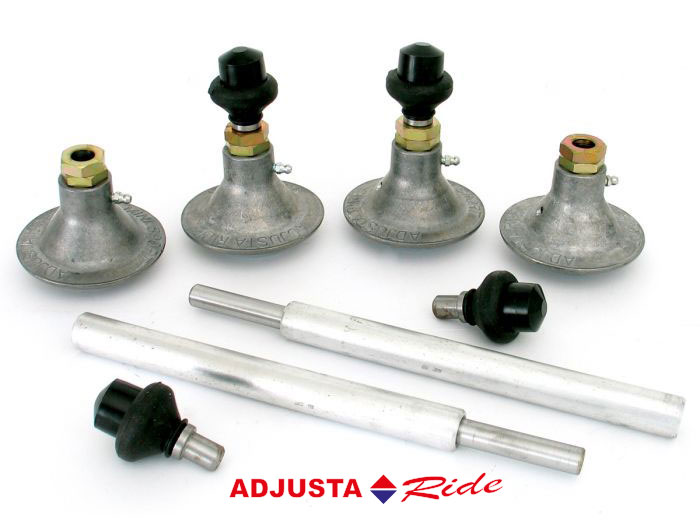

Complete Adjusta Ride Kit
For a complete suspension rebuild or upgrade, the full-car kit provides Adjusta Ride units for both front and rear, allowing the overall ride height to be set as one complete system.
This is the natural starting point for owners restoring, refreshing or developing the suspension throughout the car.
View Complete Adjusta Ride KitWhich Option Should I Choose?
If you're carrying out work at one end of the car, an individual front or rear kit can make sense. If you're rebuilding the complete suspension, replacing all four rubber cones or want control over the overall stance and setup, the complete-car Adjusta Ride kit is the more comprehensive solution.

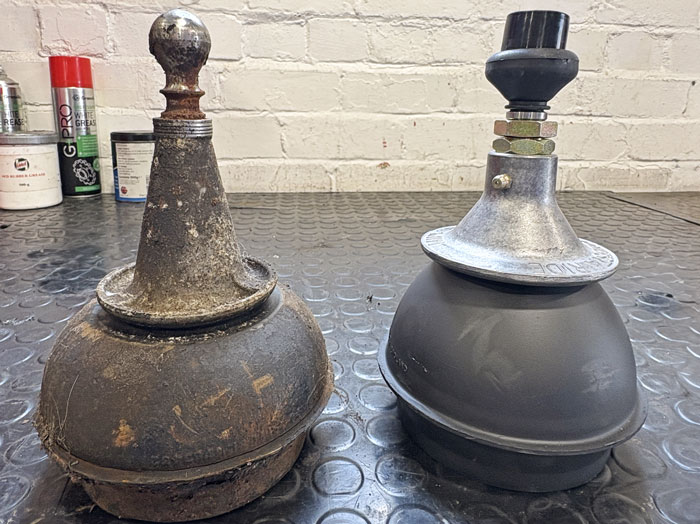

From Fixed Trumpet To Adjustable Suspension
The principle behind Adjusta Ride is deliberately straightforward: replace a fixed suspension component with an adjustable one.
The Difference Is Adjustability
The original Mini suspension trumpet has a fixed effective length. Once the suspension components are assembled, the resulting ride height is largely determined by those fixed components and the condition of the rubber cone.
Adjusta Ride introduces a mechanical adjustment into that arrangement.
Changing the effective length of the Adjusta Ride unit changes the suspension position and therefore the ride height of the car.
Once fitted, the system can be adjusted mechanically using two spanners, making it possible to fine-tune the ride height without returning to a fixed-length trumpet.
This becomes particularly useful after new suspension components have been fitted and the car has been driven, allowing the ride height to be checked again as the suspension settles.
Adjustment Is The Advantage
A fixed suspension component gives you one predetermined length. Adjusta Ride gives you the ability to set and revisit the ride height, making it much easier to achieve a balanced stance and establish the correct starting point for the rest of the suspension setup.
What Can Adjusta Ride Help You Achieve?
Adjustable suspension is often associated with lowering, but on a Classic Mini the ability to control ride height has much wider benefits.
Correct
Correct an unsuitable ride height after worn or ageing suspension components have been replaced.
Balance
Establish a more balanced stance across the car rather than simply accepting the position created by fixed components.
Fine-Tune
Revisit the ride height after new suspension components have settled or when the specification of the car changes.
Personalise
Set a sensible standard, road or more purposeful stance to suit the character and intended use of your Mini.
Don't Chase The Lowest Ride Height
Adjustability gives you options, but a good suspension setup is about finding the right position for the car rather than simply winding it down as far as possible.
The Mini needs usable suspension movement. If the car is set excessively low, available travel can be reduced and the suspension may spend more time operating close to the bump stops.
Wheel and tyre clearance must also be considered, particularly on Minis with non-standard wheels, wider tyres, body modifications or altered suspension geometry.
For a road car, the aim should be a stance that looks right while retaining enough clearance and suspension movement for the roads on which the Mini is actually driven.
A performance car may use a different setup, but ride height should still form part of a complete suspension and geometry strategy rather than being considered in isolation.
Find The Right Height
There isn't one universal ride height that's correct for every Classic Mini. Wheel and tyre choice, suspension condition, vehicle weight, road use and other modifications all need to be considered.
Mini Sport Setup Advice

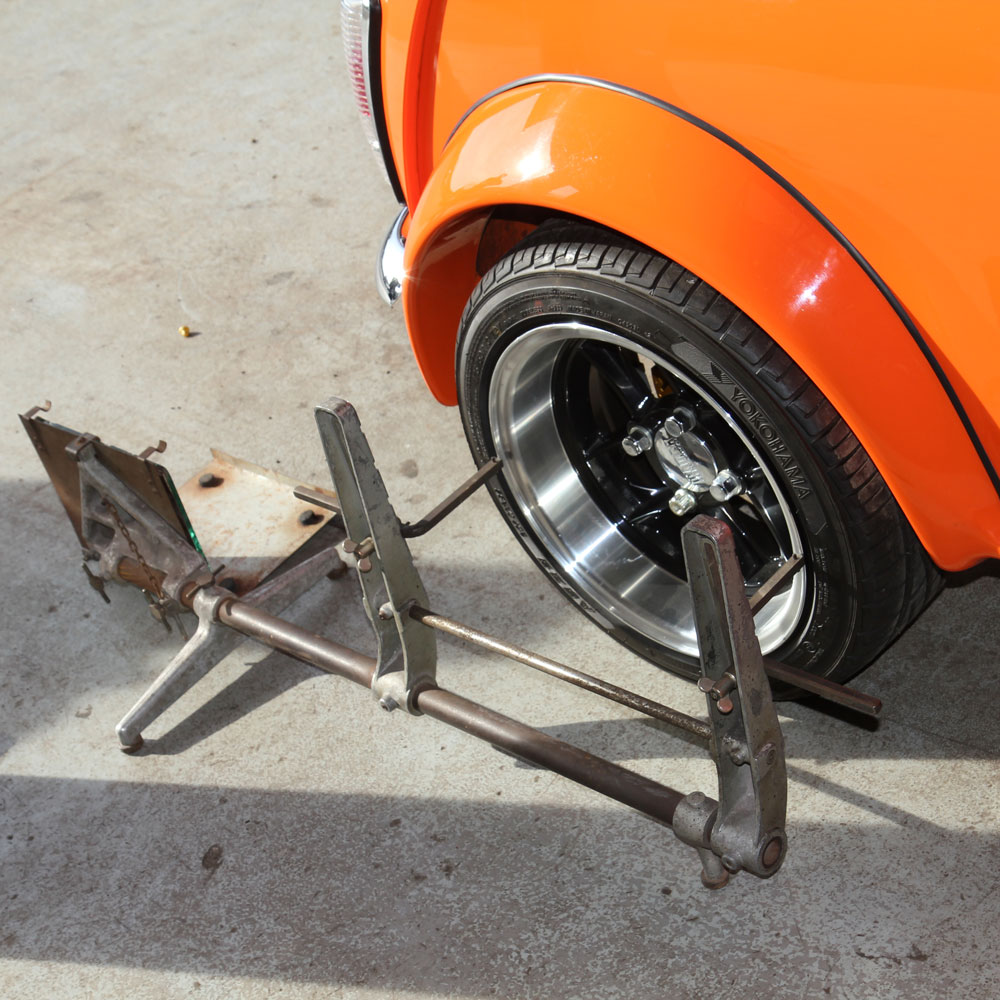

Set the car on level ground at its normal running condition and assess the complete vehicle rather than judging one wheel arch in isolation. After changing ride height, allow the suspension to settle and recheck the measurements before completing the final geometry setup.
Is Adjusta Ride Enough
If Your Rubber Cones Are Worn?
This is one of the most important questions to ask before adjusting the ride height of an older Mini.

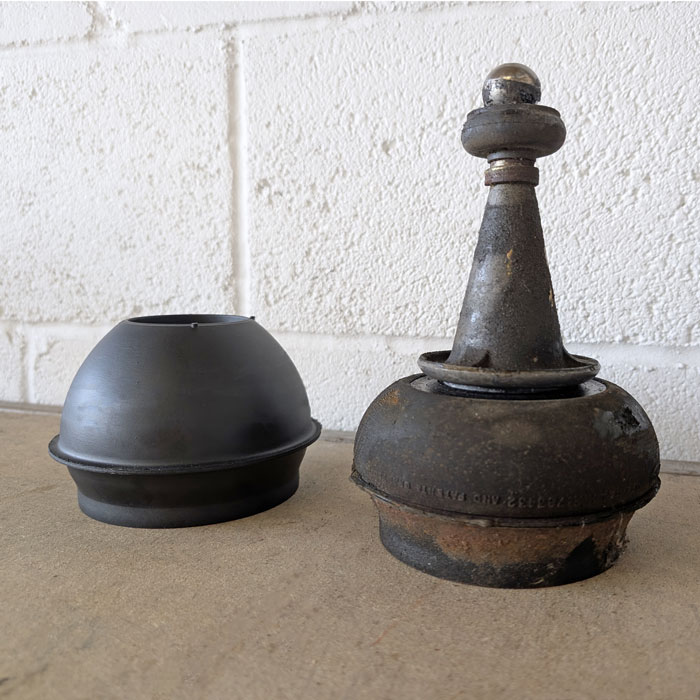

Rubber Cones Don't Last Forever
The rubber cone is the Mini's spring, and decades of age, load and use can change its condition. Old cones can settle and compress, contributing to a Mini sitting lower than it once did and altering the way the suspension feels.
Adjusta Ride can correct ride height, but it cannot restore the spring characteristics of a badly aged or deteriorated rubber cone.
If the cones are old, heavily compressed, damaged or of unknown age, suspension refurbishment is the ideal opportunity to consider replacing them at the same time.
That way, Adjusta Ride is being used to set the height of a healthy suspension system rather than simply compensating for worn springs.
Correct The Cause, Then Set The Height
If a Mini is sitting low because its rubber cones have deteriorated, winding the suspension back up addresses the height but not necessarily the underlying spring condition. Inspect the cones first, replace them where necessary, then use Adjusta Ride to establish the final ride height.
Adjust, Refresh Or Upgrade?
The condition of the existing suspension and what you want from the car should determine how far you go.
Add Ride Height Control
If the existing rubber cones and surrounding suspension components are in good condition, Adjusta Ride introduces ride-height control without requiring a complete change of suspension philosophy.
Explore Adjusta Ride
Renew The Suspension
If the rubber cones are old or the suspension is being comprehensively rebuilt, replacing the cones and adding Adjusta Ride at the same time gives the car a fresh springing foundation with adjustable ride height.
Explore Suspension Refresh Kit
Develop The Complete Chassis
Combine Adjusta Ride with carefully chosen rubber cones, dampers, bushes and geometry components when the aim is to change the way the complete Mini rides and handles.
Explore Suspension PackagesA Useful Rule Of Thumb
Good cones and a healthy suspension? Add Adjusta Ride for ride-height control. Tired or unknown suspension? Refresh the cones and wear components at the same time. Looking for a meaningful change in comfort or handling? Build Adjusta Ride into a complete suspension package.
Adjusta Ride Is The Foundation. The Rest Of The Setup Depends On What You Want From The Mini.
Ride height is only one part of the suspension. The rubber cones provide the springing, the dampers control movement, and the geometry components determine how the wheels are positioned.
That means the best suspension package is not always the one with the most parts. It is the one that suits the way the Mini is used.
For some owners, the priority is simply to refresh a tired standard suspension and gain ride-height adjustment. For others, comfort is the goal. For a fast-road or performance Mini, the focus may move towards body control, geometry and more precise handling.
Think Of The Suspension As A Complete System
Rubber cones provide the springing. Adjusta Ride sets the ride height. Shock absorbers control the movement. Camber, castor and tracking components help position the wheels correctly. When these parts are chosen to work together, the Mini becomes easier to set up and more predictable to drive.

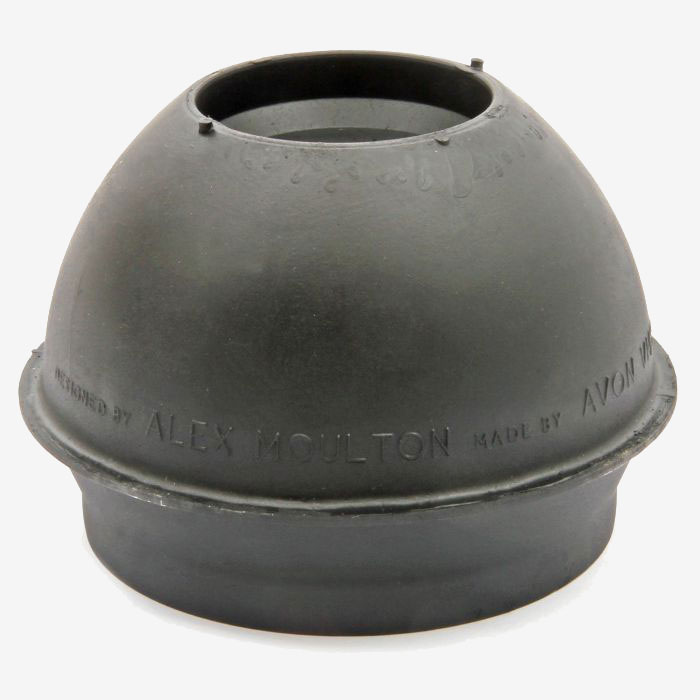

Start With The Spring
Before adjusting the ride height, make sure the rubber cones themselves are still doing the job they were designed to do.
On a dry-suspension Mini, the rubber cone is the spring. Its condition has a direct effect on ride height, comfort and the way the suspension responds.
If the cones are old, heavily compressed or of unknown age, simply fitting adjustable suspension units may not address the underlying problem.
Replacing tired cones gives the suspension a healthier starting point. Adjusta Ride can then be used to establish the final ride height once the car is assembled and settled.
- Inspect the cones for age, compression and deterioration.
- Replace badly settled or damaged cones before final setup.
- Use the correct front and rear cone specification.
- Set the final ride height only after the complete suspension is assembled.
Mini Sport Workshop Advice
If the Mini is sitting low because the rubber cones have settled, correct the spring condition first. Adjusta Ride should be used to set the final height of a healthy suspension system, not simply to disguise worn rubber cones.
Renew The Foundation
And Add Adjustment At The Same Time
If the suspension is already apart, replacing tired cones and fitting Adjusta Ride together is one of the most logical ways to refresh a dry-suspension Mini.

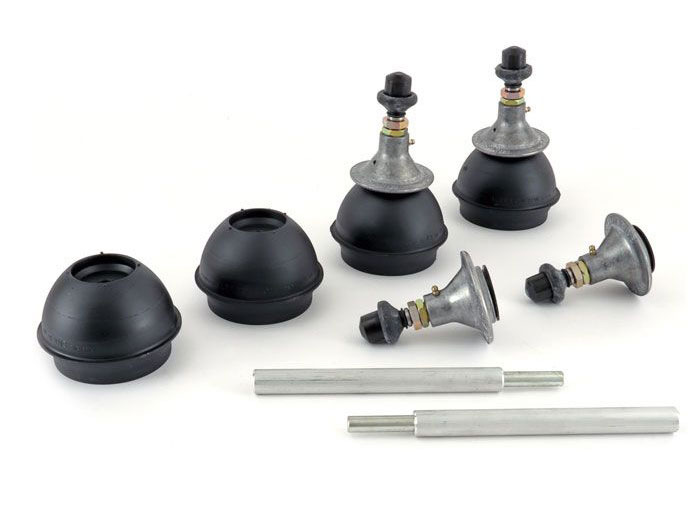

Mini Suspension Refresh Kit
A practical choice for Minis with ageing suspension, combining replacement rubber cones with the complete Adjusta Ride system so the springing and ride-height control can be renewed together.
Explore Suspension Refresh KitWhy This Combination Makes Sense
Once the original suspension trumpets and rubber cones are being removed, the major access work has already been done.
Replacing worn cones restores the springing foundation, while fitting Adjusta Ride at the same time adds the ability to set and revisit the ride height once the car is back together.
This is particularly useful on restoration and road cars where the aim is not necessarily to create a heavily modified Mini, but simply to make the suspension feel fresh, sit correctly and remain adjustable for the future.
- Renew tired rubber cones.
- Replace fixed suspension trumpets with adjustable units.
- Correct the final ride height after assembly.
- Create a better foundation for future suspension setup.
Moulton Smootha Ride
For owners who love the character of the Mini but want a more compliant and comfortable road car, the Moulton Smootha Ride system takes a different approach.
The original Mini suspension concept was created by Dr Alex Moulton, and the Smootha Ride rubber cones were developed specifically to reduce the harshness often associated with dry-suspension Minis.
Mini Sport then developed the complete Smootha Ride package around those cones, using specially matched Adjusta Ride units, dampers and rear geometry components.
The result is not simply a lower or firmer Mini. It is a complete suspension package aimed at making the car more comfortable and easier to drive while retaining the unique character of the original rubber-cone system.
- Special Moulton front rubber cones.
- Special Moulton rear rubber cones.
- Mini Sport adjustable front suspension units.
- Mini Sport adjustable rear suspension units.
- Rear negative-camber and tracking brackets.
- Front and rear shock absorbers.

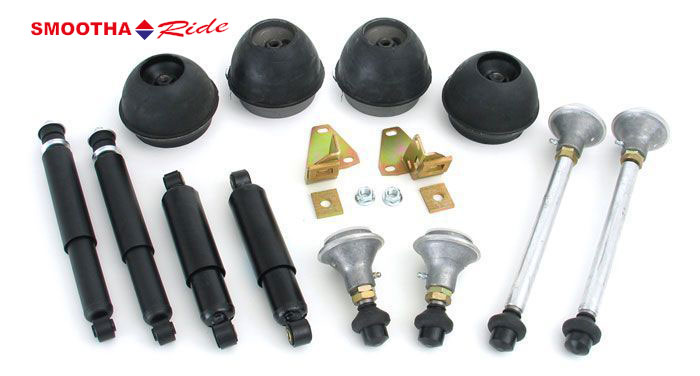

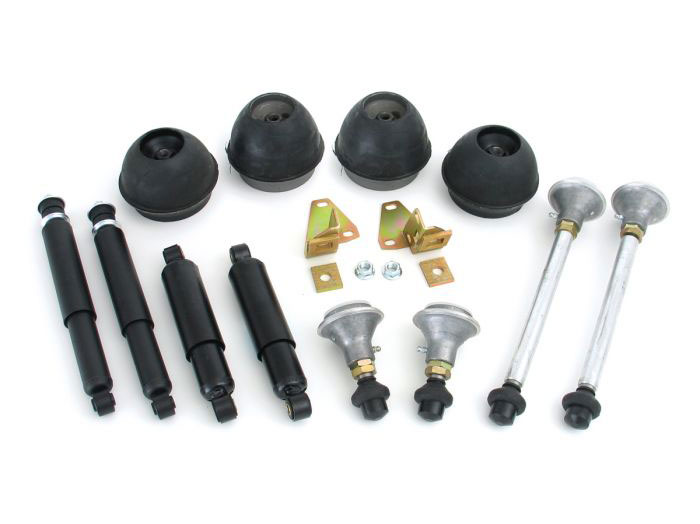

Moulton Smootha Ride Suspension Kit
A complete suspension package for owners who want to reduce harshness and improve everyday ride comfort while retaining adjustable ride height.
Explore Smootha Ride
Dr Alex Moulton with Mini Sport founder Brian Harper. A connection between the engineering heritage behind the Mini's innovative rubber suspension and Mini Sport's continuing development of suspension solutions for the Classic Mini.
A Different Kind Of Upgrade
Smootha Ride is not aimed at making the Mini feel like a stiff competition car. It is for owners who want to preserve the Mini's distinctive suspension character while improving comfort and everyday usability.
Sports Ride Suspension Packages
For owners who want a more controlled and purposeful road Mini, Adjusta Ride can be combined with uprated dampers to create a simple sports suspension package.

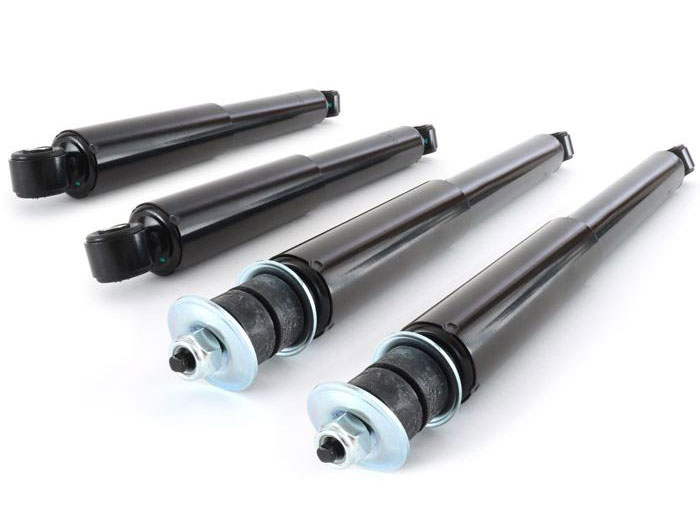

Ride Height Plus Better Movement Control
Adjusta Ride sets the suspension height, while the dampers control how quickly the suspension moves and settles.
Combining the two creates a useful fast-road upgrade without necessarily changing every geometry component on the car.
This approach suits Minis where the suspension is fundamentally healthy but the owner wants more control and a more purposeful driving feel.
- Adjustable ride height.
- Choice of suitable uprated shock absorbers.
- Improved control over suspension movement.
- Ideal for road and fast-road Minis.

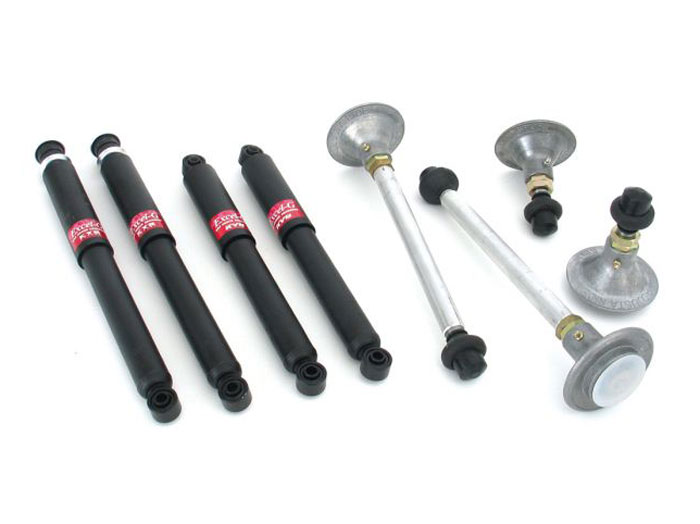

Mini Sport Sports Ride
A straightforward performance step that combines Adjusta Ride with uprated dampers for owners who want better suspension control without moving immediately to a full geometry package.
Explore Sports Suspension KitsWhen Ride Height Is Only The Beginning
A performance suspension setup needs more than adjustable height. It also needs control over the way the wheels are positioned and how the suspension reacts under braking, cornering and acceleration.

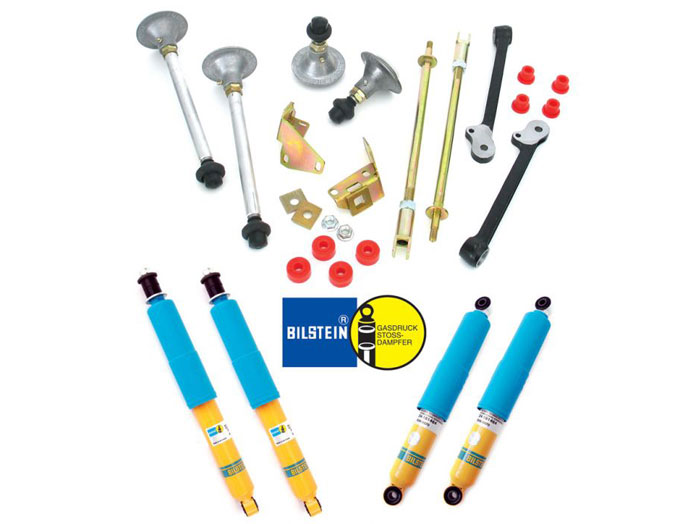

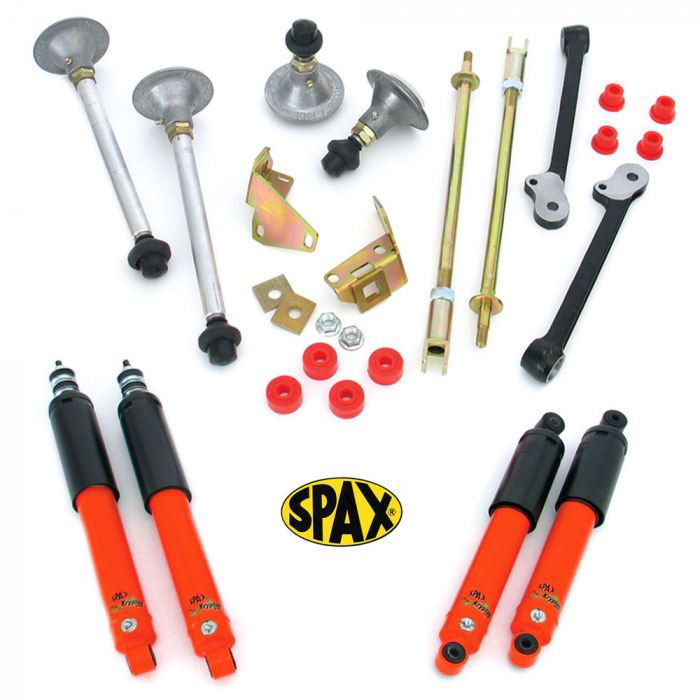

Performance Handling Suspension Kit
A complete package that uses Adjusta Ride as the foundation, then adds geometry and control components to create a more focused fast-road or performance Mini.

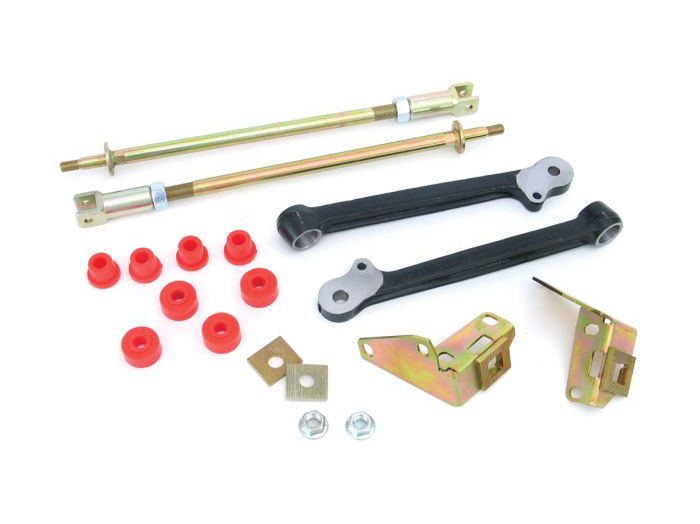

Explore Performance Handling KitsWhat The Extra Components Do
Mini Sport's Performance Handling packages were created to bring the key suspension setup components together rather than leaving owners to select each part independently.
- Adjusta Ride: allows the ride height to be set.
- Shock absorbers: control suspension movement.
- Adjustable tie rods: allow castor adjustment.
- Negative-camber bottom arms: alter front wheel camber.
- Rear camber and tracking brackets: provide rear geometry adjustment.
- Polyurethane bushes: reduce unwanted movement at key suspension mounting points.
This gives the suspension fitter more control over both the stance of the car and the geometry around which it operates.
Important: Geometry Should Follow Ride Height
Ride height should be established before the final camber, castor and tracking setup is completed. Changing the height afterwards can alter the suspension position, so the geometry should be checked once the car is sitting where it will actually be driven.
Which Suspension Package Is Right For Your Mini?
| Your Priority | Recommended Starting Point | Why |
|---|---|---|
| Correct or adjust ride height | Adjusta Ride | Adds variable ride-height control while retaining the existing suspension springing and damper specification. |
| Refresh an ageing suspension | Suspension Refresh Kit | Replaces tired rubber cones and adds Adjusta Ride at the same time. |
| Improve everyday comfort | Moulton Smootha Ride | Uses specially developed rubber cones with matched adjustable suspension and dampers. |
| Improve road and fast-road control | Sports Ride | Combines adjustable ride height with uprated shock absorbers. |
| Build a more complete performance setup | Performance Handling Kit | Adds geometry control, bushes and damper choice around the Adjusta Ride system. |
Speak To The Mini Sport Experts
The right suspension package depends on the condition of your Mini, the wheels and tyres fitted, the roads you use and whether your priority is comfort, road handling or outright performance.
If you're unsure whether your Mini needs Adjusta Ride alone, new rubber cones or a complete handling package, speak to our experienced team before ordering.
Mini Sport Technical Sales Team
Telephone: +44 (0) 1282 778731
Email: sales@minisport.com
We can help you choose the most suitable components and build a suspension package around the way you actually use your Mini.
Fit It Properly. Set It Properly.
Adjusta Ride is designed as a direct replacement for the original suspension trumpet arrangement, but the quality of the final result still depends on the condition of the surrounding suspension and how carefully the car is set up afterwards.
If the suspension is already being dismantled, use the opportunity to inspect the parts that are normally difficult to reach.
There is little value in fitting new adjustable suspension units around worn knuckle joints, damaged bushes or badly compressed rubber cones.
Before Fitting Adjusta Ride
- Inspect the rubber cones for compression, damage and age.
- Check the knuckle joints and cups for wear.
- Inspect front upper arms and rear radius arms for excessive play.
- Check suspension bushes and mounting points.
- Inspect bump and rebound rubbers.
- Check the condition and suitability of the shock absorbers.
- Inspect tyres for unusual wear that may indicate an existing geometry issue.
Workshop focus: The best time to inspect worn suspension components is while the system is already apart.
Important: Front Rubber Cone Work Requires The Correct Tool
The front rubber cone is held under load and must be compressed correctly before the suspension is dismantled. Mini Sport lists the appropriate suspension compression tool for this work. Do not attempt to remove a front cone without using the correct tool and safe workshop procedures.
Set The Ride Height Before Final Geometry
Once the suspension is assembled, the next job is not simply to make the car look right. The car needs to be settled, measured and checked before the final suspension geometry is set.
1. Settle The Suspension
Lower the car onto level ground and allow the suspension to settle. Rolling the car forwards and backwards can help remove any temporary bind created while it was raised.
2. Measure The Car
Measure consistently from the same reference points on each side rather than judging the car purely by eye.
3. Adjust Gradually
Make sensible adjustments and recheck the complete car after each change. Avoid chasing a dramatic stance at the expense of usable suspension travel.
4. Check Clearances
Confirm tyre, wheel, body and bump-stop clearance throughout the suspension movement and steering range.
5. Check Geometry
Once the ride height is where it will be used, check the camber, castor and tracking. The Rover workshop data specifies suspension geometry with the vehicle at kerbside weight.
6. Recheck After Driving
New cones and bushes can settle during initial use. Recheck ride height and fasteners after the suspension has had time to bed in.
Ride Height First. Geometry Second.
The suspension geometry should be checked after the final ride height has been established. Altering the height later changes the working position of the suspension, so camber, castor and tracking may need to be checked again.
Useful Suspension Torque Figures
The following figures are taken from the Rover Mini repair manual covering later Classic Mini models and are included as a useful reference only.
| Component | Torque |
|---|---|
| Road wheel nuts | 60 Nm |
| Suspension arm to swivel hub ball-joint nut | 52 Nm |
| Tie-rod arm locknuts | 52 Nm |
| Front damper to body nut | 37 Nm |
| Front damper to suspension arm through-bolt | 48 Nm |
| Upper arm pivot-shaft nut | 72 Nm |
| Lower arm pivot-shaft nut | 45 Nm |
Technical Note
Classic Mini suspension specifications vary by model, year and component arrangement. Always confirm the correct workshop-manual figures for the particular vehicle being worked on and follow any fitting instructions supplied with the Mini Sport components.
Complete The Suspension While You Have Access
Suspension work often exposes wear that cannot easily be seen with the car sitting on its wheels. This is the right time to deal with those components rather than rebuilding around them.
Knuckle Joints
Knuckle joints sit at a key suspension pivot point. Worn joints or cups can introduce unwanted movement and should be inspected whenever the suspension trumpet is removed.
Explore Knuckle Joints
Shock Absorbers
The dampers control suspension movement. Their condition and specification should suit the ride height and intended use of the car.
Explore Shock Absorbers
Geometry & Bushes
Adjustable tie rods, camber components and quality bushes allow the suspension geometry to be developed around the final ride height.
Explore Suspension GeometryMini Sport Adjusta Ride Explained
What is Mini Sport Adjusta Ride?
Adjusta Ride is Mini Sport's adjustable suspension system for dry-suspension Classic Minis. It replaces the original fixed suspension trumpet arrangement and allows the ride height to be mechanically adjusted.
Does Adjusta Ride replace the rubber cones?
No. The rubber cone remains the suspension spring. Adjusta Ride replaces the fixed trumpet arrangement between the cone and suspension arm.
Can Adjusta Ride be used to lower my Mini?
Yes, ride height can be reduced within a sensible suspension setup. However, the objective should be to establish the correct height for the car rather than simply setting it as low as possible.
Can Adjusta Ride raise a Mini that is sitting too low?
Adjusta Ride can be used to correct ride height, but if the Mini is sitting low because the rubber cones are badly compressed or deteriorated, the cones should be inspected and replaced where necessary rather than relying on adjustment alone.
Should I fit front and rear Adjusta Ride together?
Individual front and rear kits are available, but fitting the complete-car system gives you control over the overall ride height and is the natural choice during a complete suspension rebuild or refresh.
Do I need to modify the body?
No body modification is required for the Adjusta Ride system on suitable dry-suspension Classic Minis.
How is the ride height adjusted?
The Adjusta Ride system uses a mechanical threaded adjustment. Mini Sport's catalogue describes adjustment as requiring two spanners, allowing the ride height to be revisited after installation.
Do I need a suspension cone compressor?
A suitable suspension compression tool is required when removing or fitting the front rubber cone and associated suspension components. Always use the correct tool and safe workshop procedures.
Will I need the wheel alignment checked afterwards?
Yes. Once the final ride height is established, camber, castor and tracking should be checked. This is especially important on modified suspension or where geometry components have also been changed.
Is Adjusta Ride only for performance Minis?
No. Adjusta Ride is equally useful on restoration, everyday road and comfort-focused Minis because it provides ride-height control. It also forms the foundation of more performance-oriented suspension packages.
What is the best setup for an everyday road Mini?
That depends on the condition of the existing suspension and the ride you want. A healthy set of standard cones with Adjusta Ride suits many road cars, while Moulton Smootha Ride is the stronger choice where improved comfort is the main priority.
Start With What Your Mini Actually Needs
Adjusta Ride
The core variable-height system for owners who want control over how their Classic Mini sits.
Explore Adjusta Ride
Suspension Refresh Kit
Replace tired rubber cones and add ride-height adjustment at the same time.
Explore Suspension Refresh
Moulton Smootha Ride
A complete system developed for owners who want adjustable suspension with greater everyday ride comfort.
Explore Smootha RideSpeak To The Mini Sport Experts
Every Classic Mini has a different history. Cone condition, wheel and tyre size, dampers, suspension geometry and previous modifications can all affect which parts are right for your car.
If you're unsure whether you need Adjusta Ride alone, new rubber cones, Smootha Ride or a complete Performance Handling package, our experienced team can help.
Mini Sport Technical Sales Team
Telephone: +44 (0) 1282 778731
Email: sales@minisport.com
Tell us how your Mini currently sits, what suspension components are fitted and how you use the car, and we'll help you build the right setup.
Your Mini Should Sit Right And Drive Right
Adjusta Ride gives you control over one of the most important starting points in a Classic Mini suspension setup: ride height.
Fit it as part of a suspension refresh, combine it with Moulton Smootha Ride for improved comfort, or build it into a complete performance handling package. Whatever the direction of your Mini, the aim is the same: create a suspension system where the components work together and the car feels right on the road.
